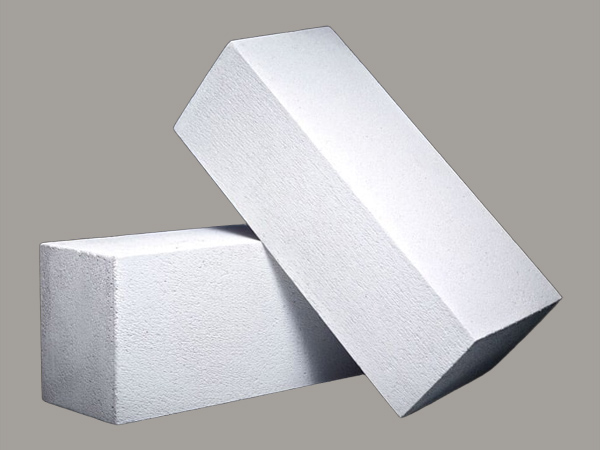

Autoclaved Aerated Concrete (AAC) is a lightweight, precast building material with over 70 years of global application in residential, commercial, and industrial construction. AAC is made from natural raw materials such as sand (or fly ash), cement, lime, gypsum, aluminum powder. The unique manufacturing process creates a porous concrete that combines structural strength, thermal insulation, and fire resistance in a single product.

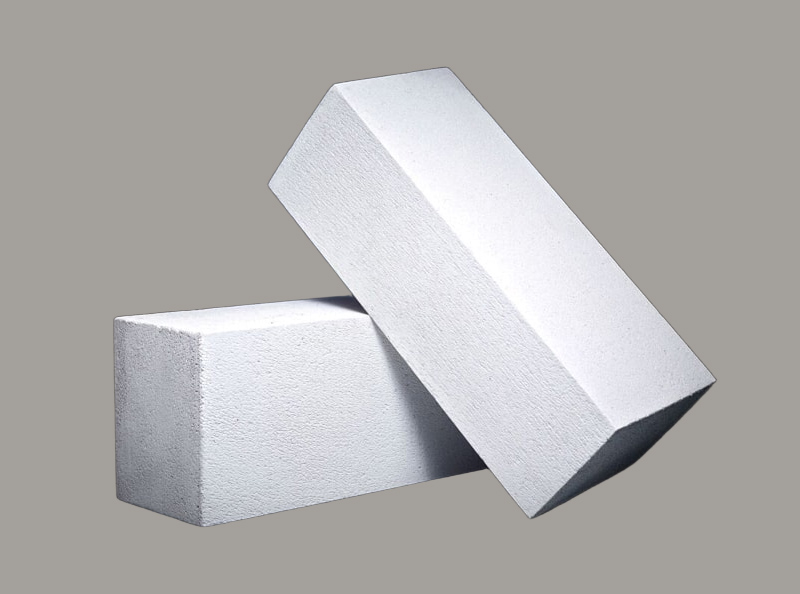

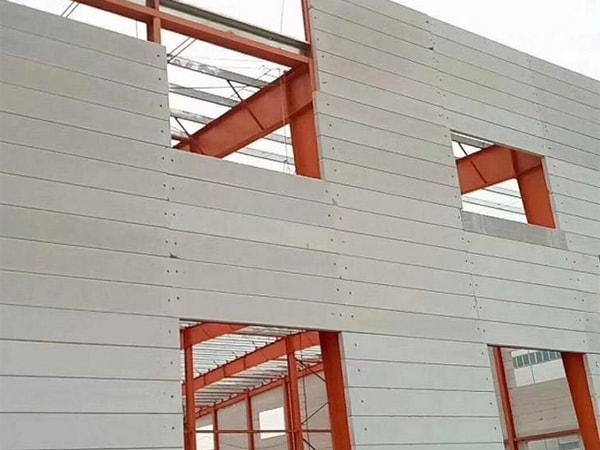

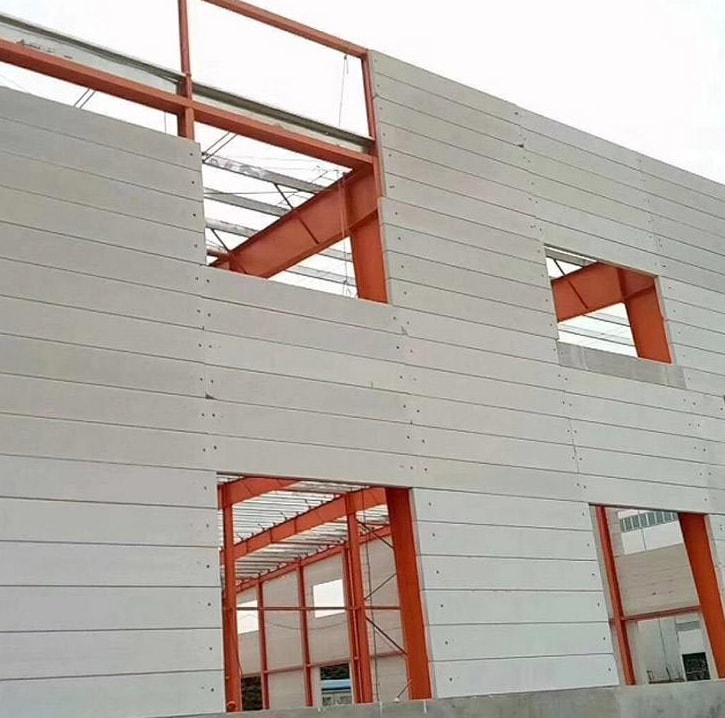

AAC is available in various forms, including standard blocks, mega blocks, and panels, offering versatility for different construction needs. Its superior characteristics—such as lightweight load-bearing capacity, excellent insulation, and sustainability—have made it a preferred alternative to conventional building materials. Originally developed in Europe in the early 20th century, AAC has become a dominant wall-building material across the continent.

Contact Us

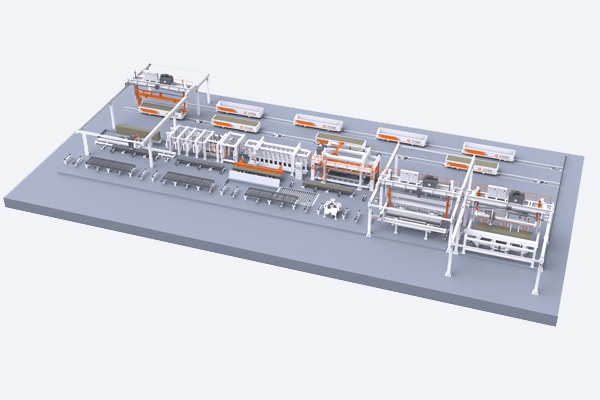

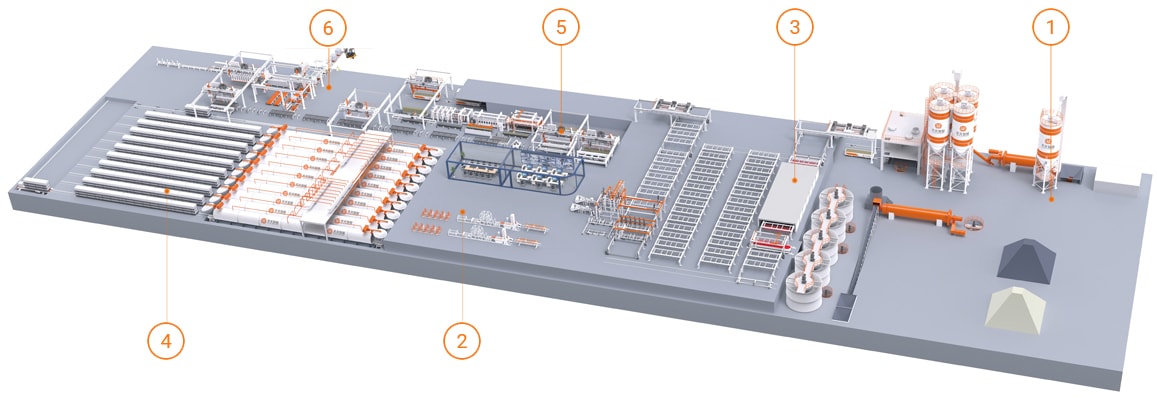

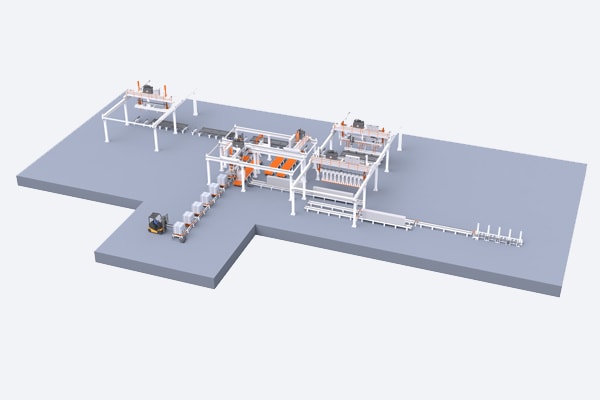

As your technical partner, Teeyer will participate in the whole AAC plant project, which includes project plan, construction and operation. In terms of meeting local market needs, customer requirements and product demands, a high level of product customization is the key assessment criteria. Our excellent technology enables you to stand out in the market and provide reliable aerated concrete products to meet the needs of the local market. Over ten years, Teeyer has developed comprehensive one-stop service solutions. Combining our rich experience and customer-focused mission, our engineers will provide the most efficient plan, the maximum production capacity and the highest quantity to all the customers.

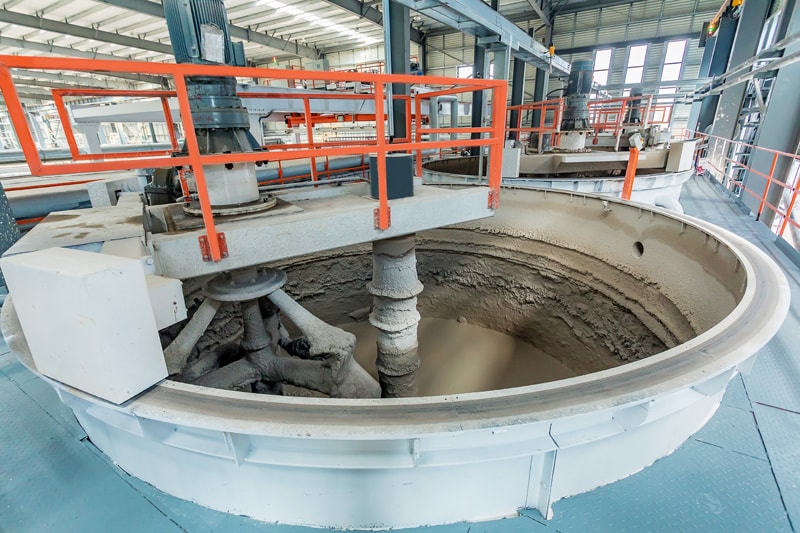

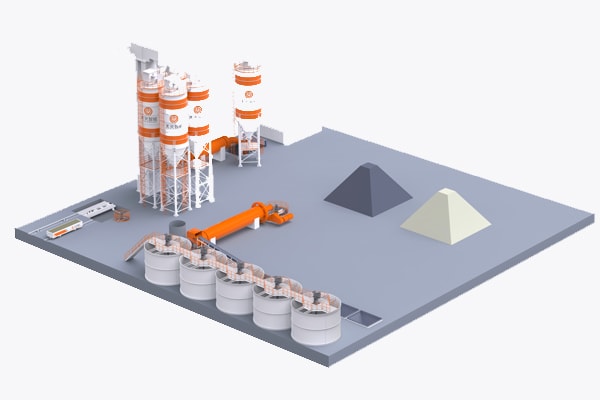

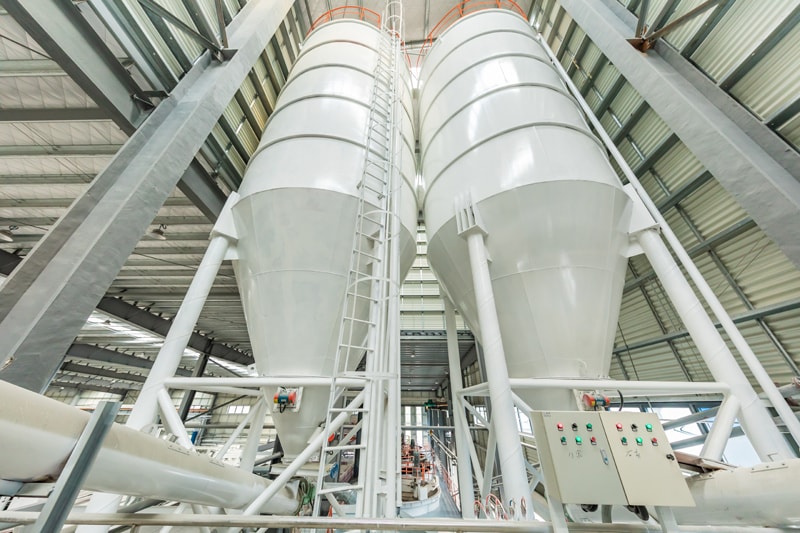

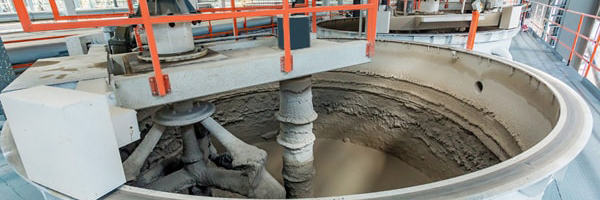

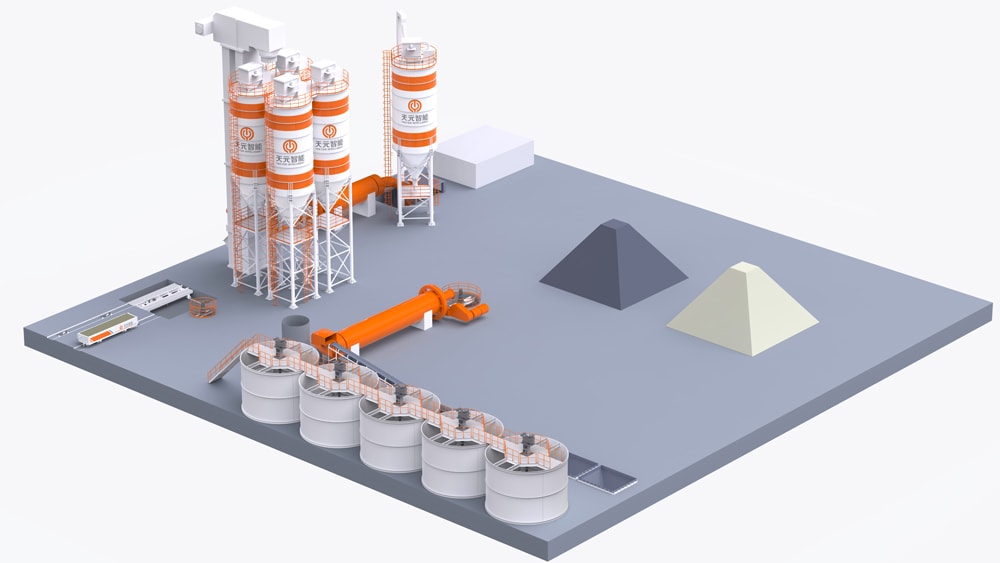

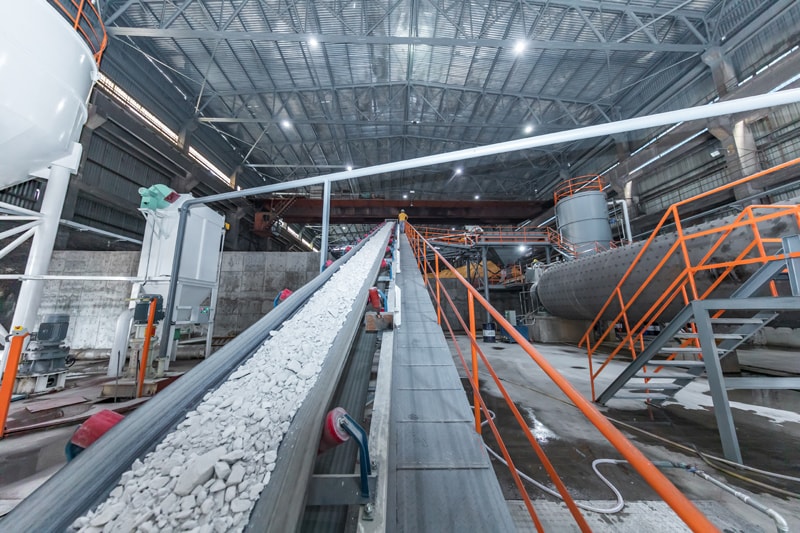

• Raw Material Processing Section

  This section focuses on the processing and storage of raw materials.

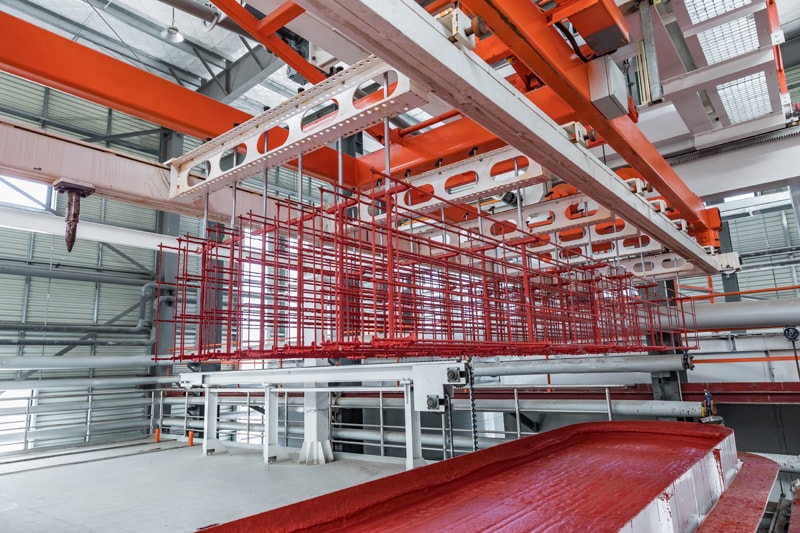

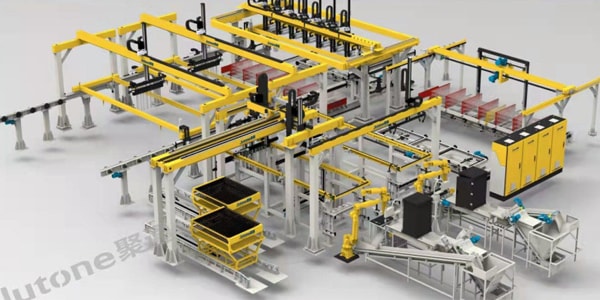

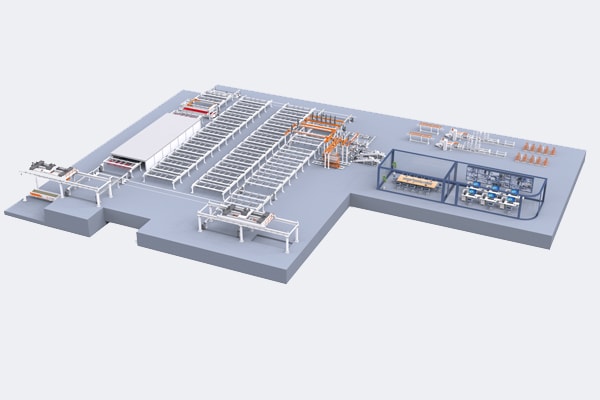

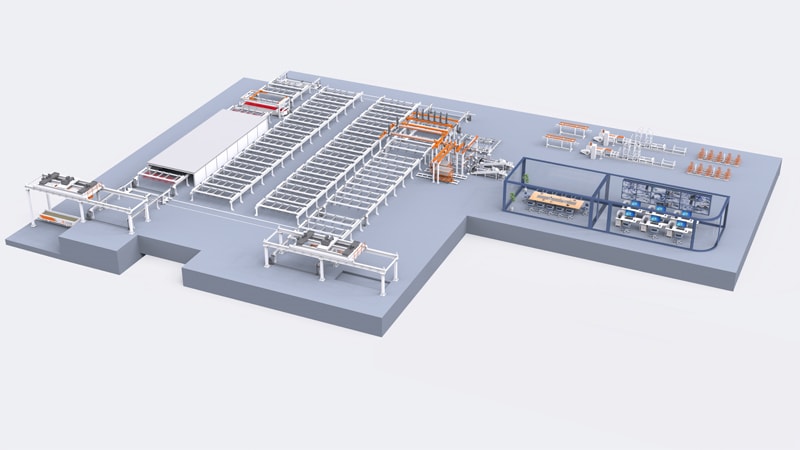

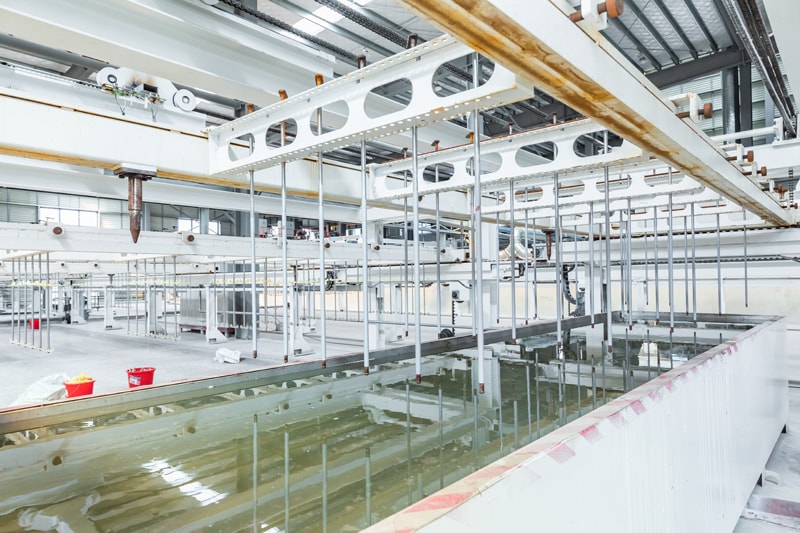

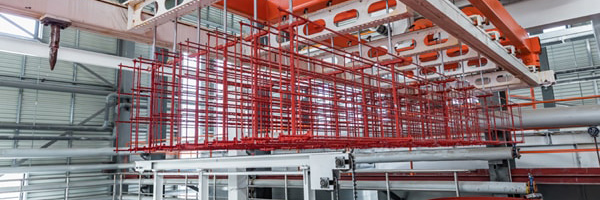

• Automatic Steel Mesh Fabricating & Circulation Section

  This section is responsible for fabricating steel mesh (cage) required for the panels, as well as manual or automatic mesh hanging and the automatic circulation of the assembly frame.

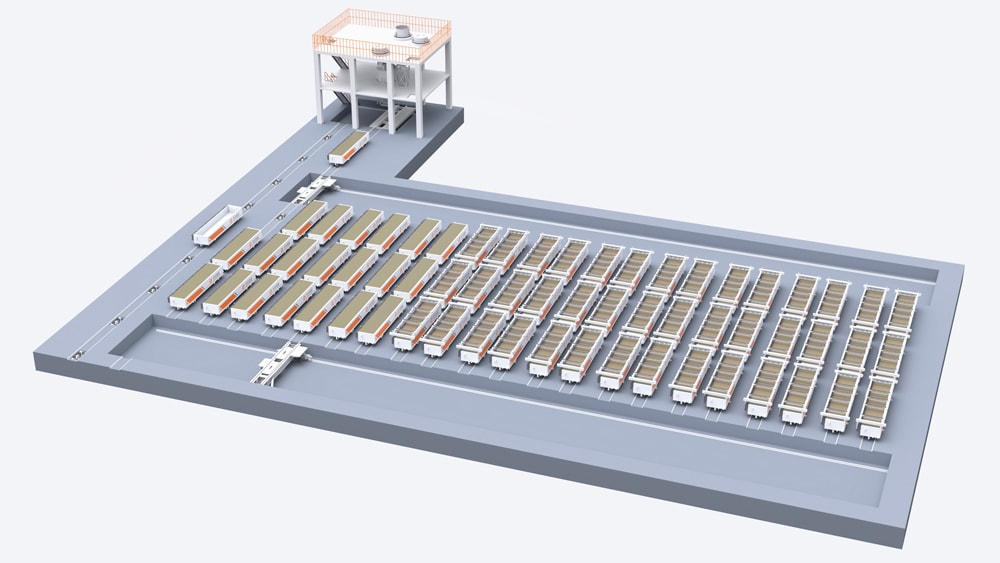

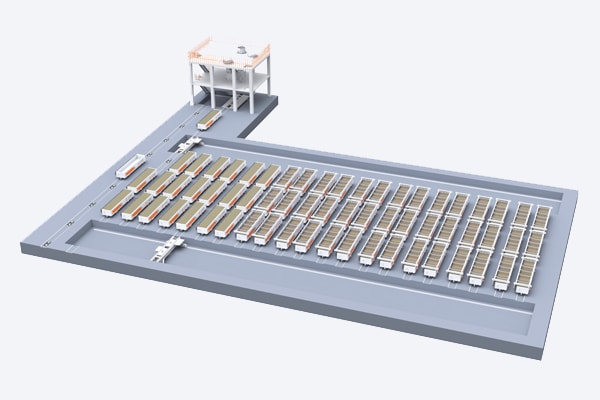

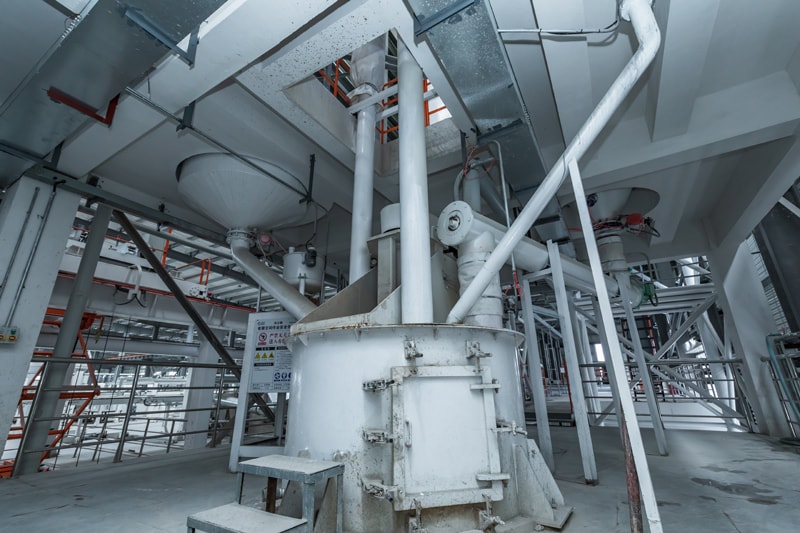

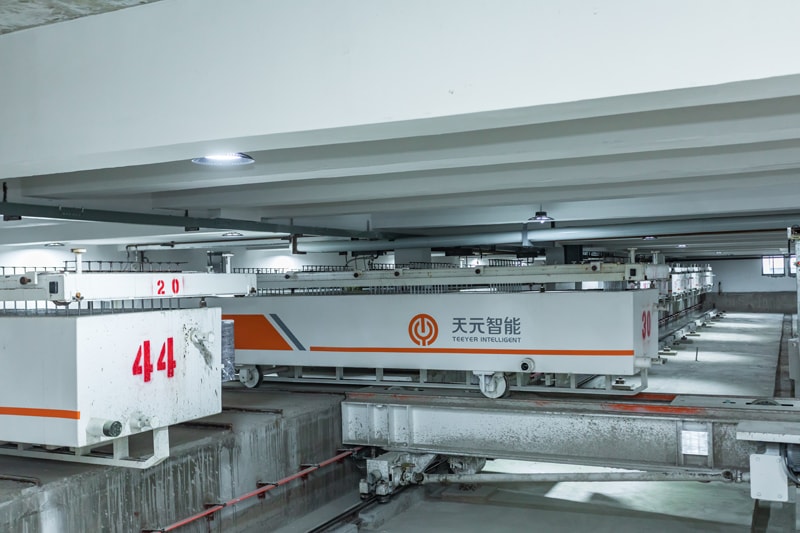

• Batching & Pre-curing Section

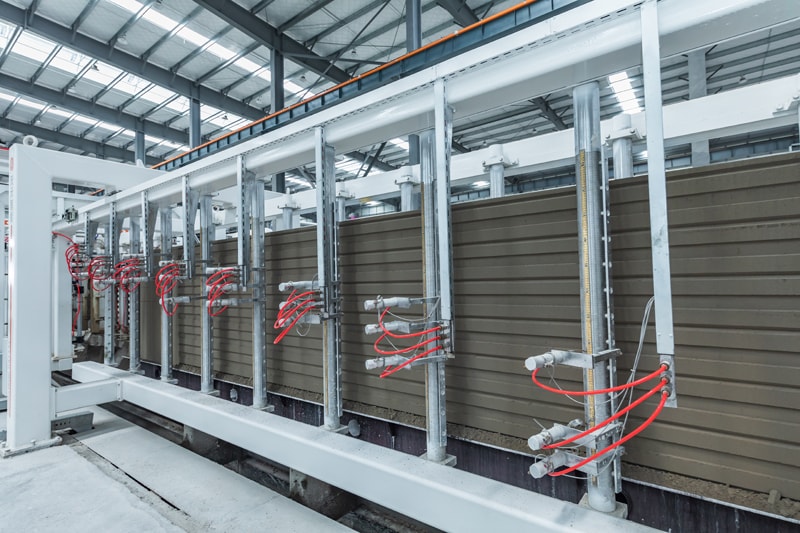

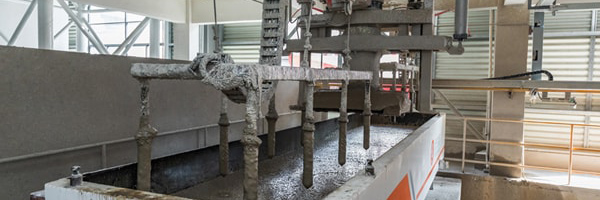

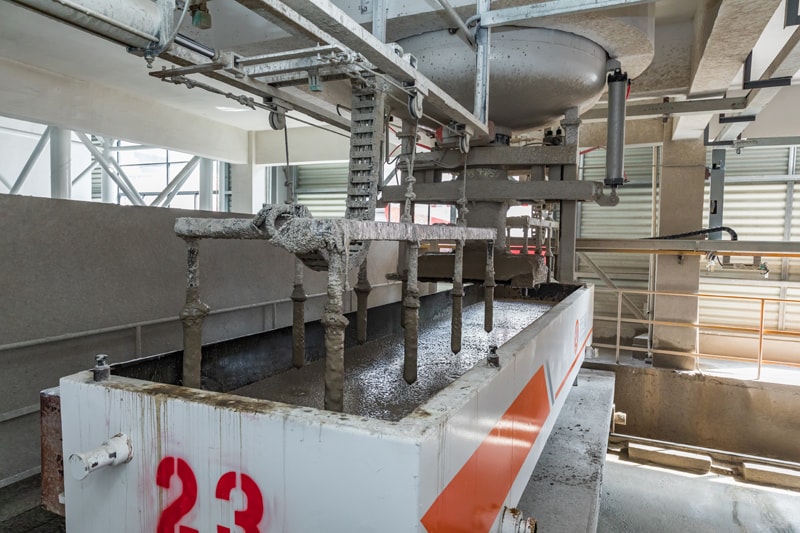

  In this section, raw materials are mixed into a pouring mixer and then poured into mould. During the production, the steel mesh is inserted into the slurry by pin-inserting hoister, and the mould is transported to the pre-curing room via a ferry cart. The slurry will form into the green cake by foaming and hardening. Subsequently, the mould transports the green cake to the cutting section by pre-curing ferry cart, withdrawing the inserted mesh holding beans at the same time.

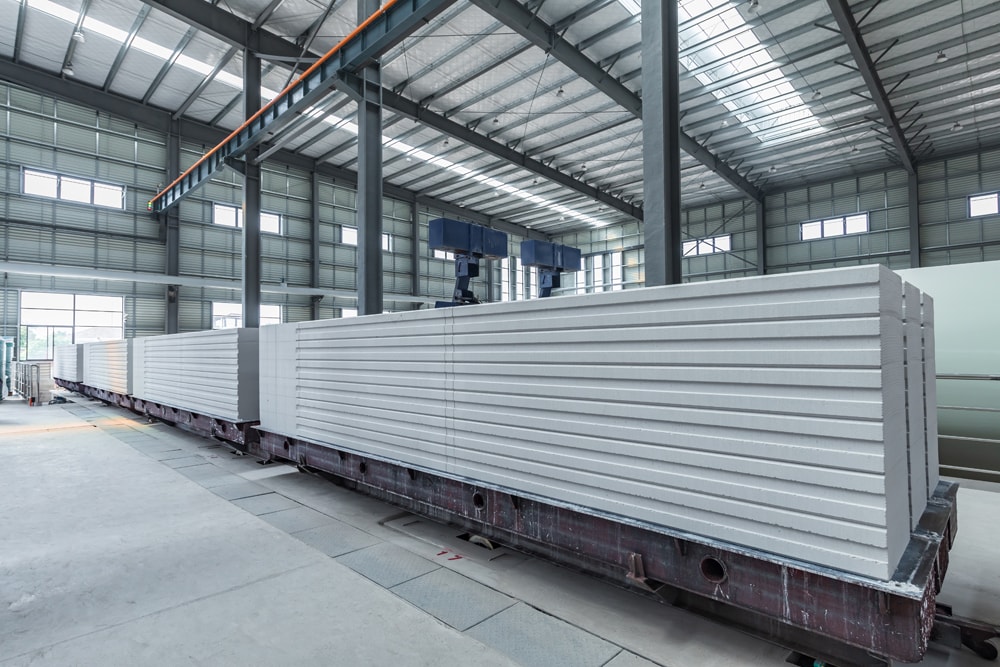

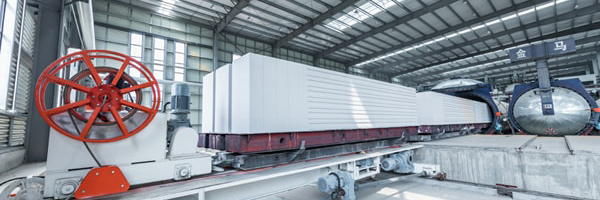

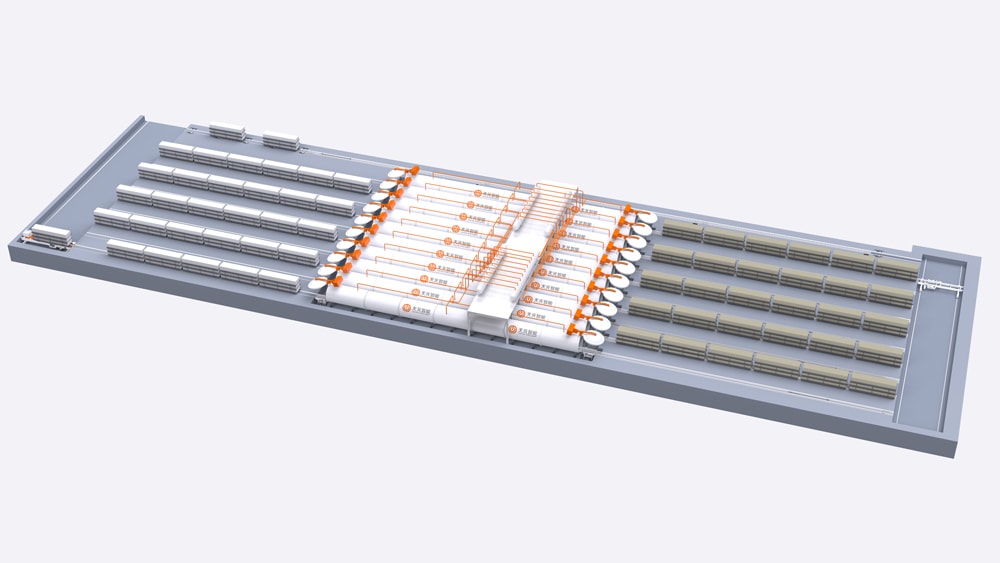

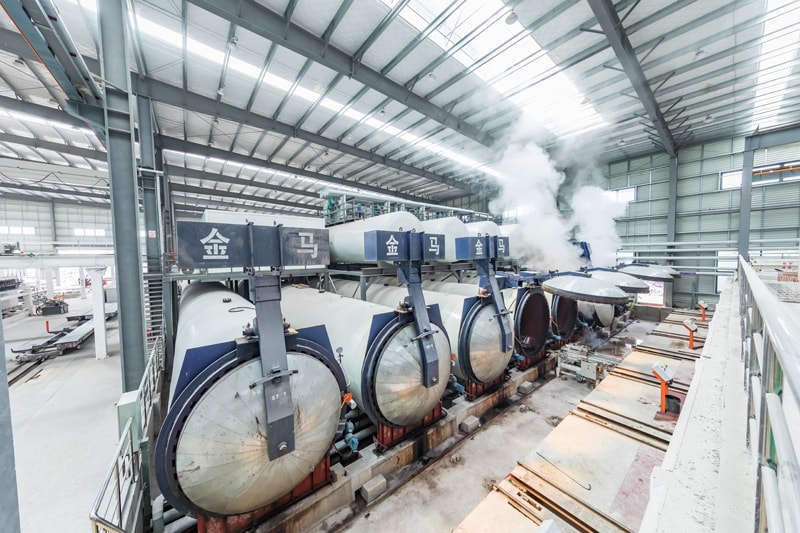

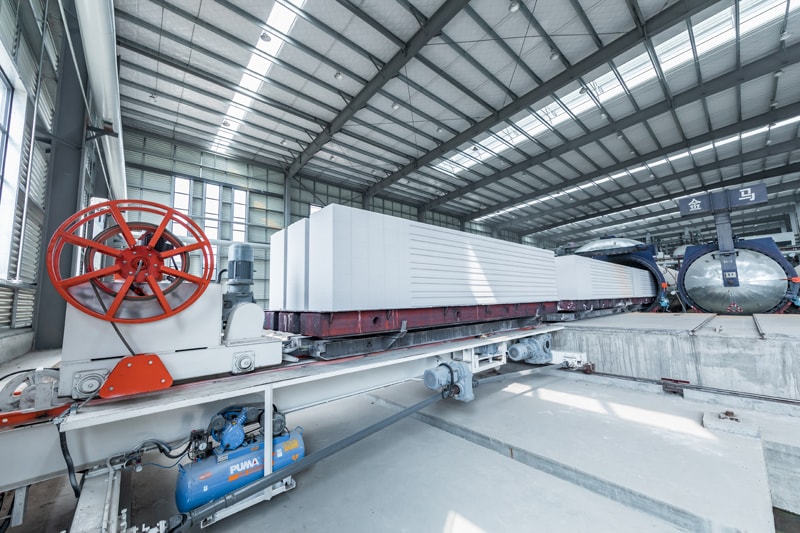

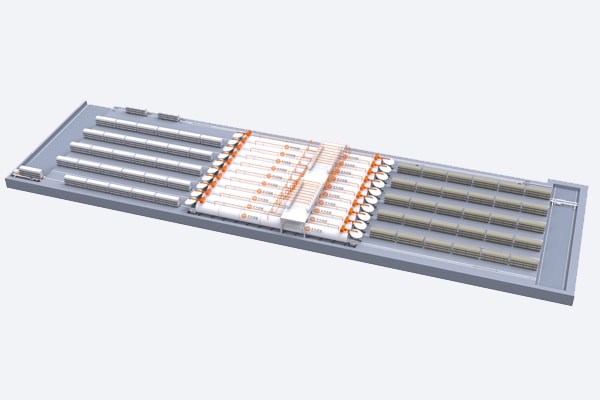

• Autoclaving Section

  The grouped green cakes are sent into the autoclave for constant pressure curing by traction mechanism and ferry carts. Once the autoclaving is completed, the products will be pulled out of the autoclave by the ferry cart and transported to the finished products packing section.

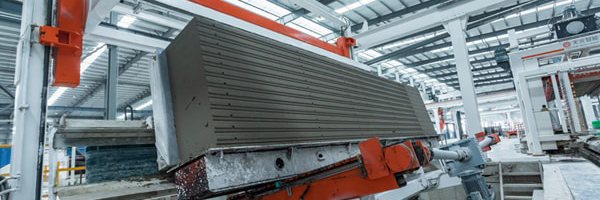

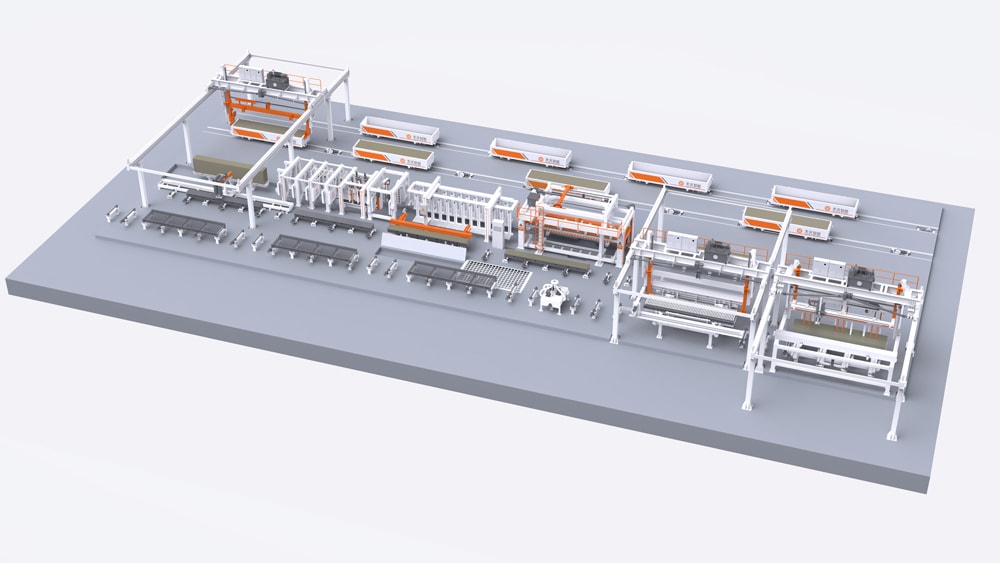

• Cutting Section

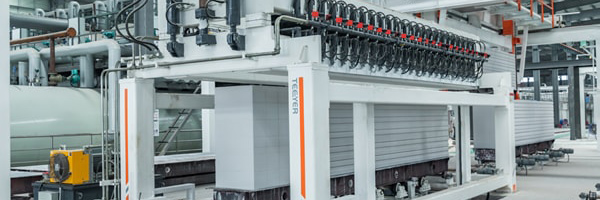

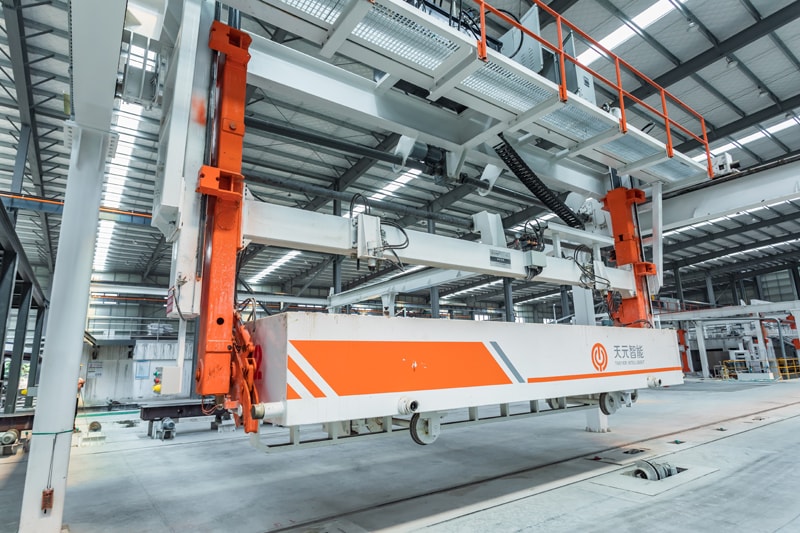

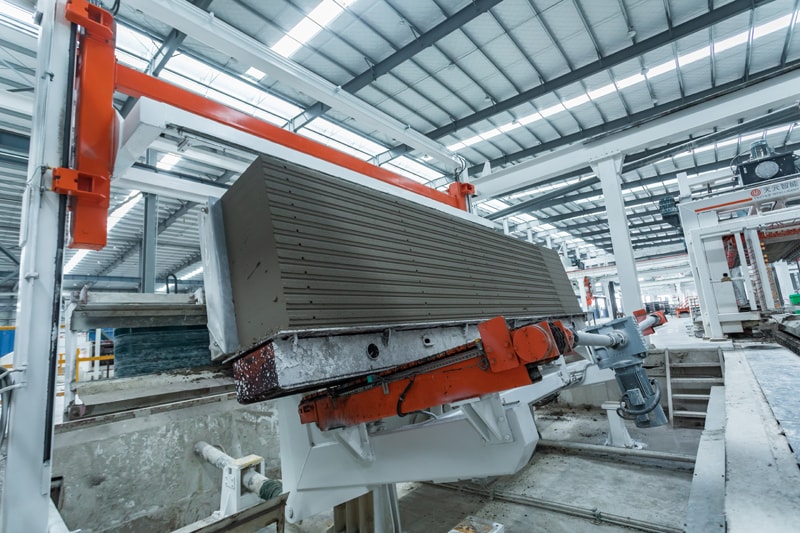

  This is the core section during the AAC block and panel production. The mould with green cake is demoulded by tilting hoister, and the green cake along with side plate are placed on a cutting cart, shaped through the process of profile cutting, horizontal cutting and vertical cutting. Bottom waste is removed by tilting table and scraper, then recycled. At last, the green cake is loaded by hoister and ferry cart.

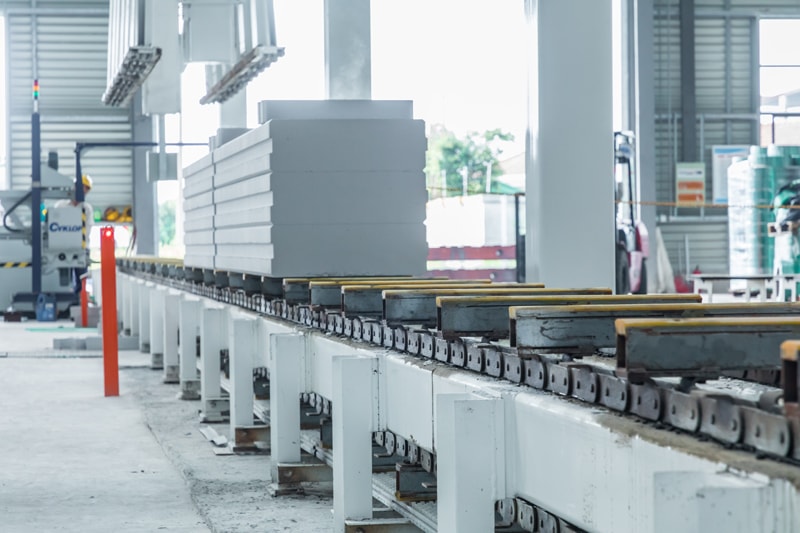

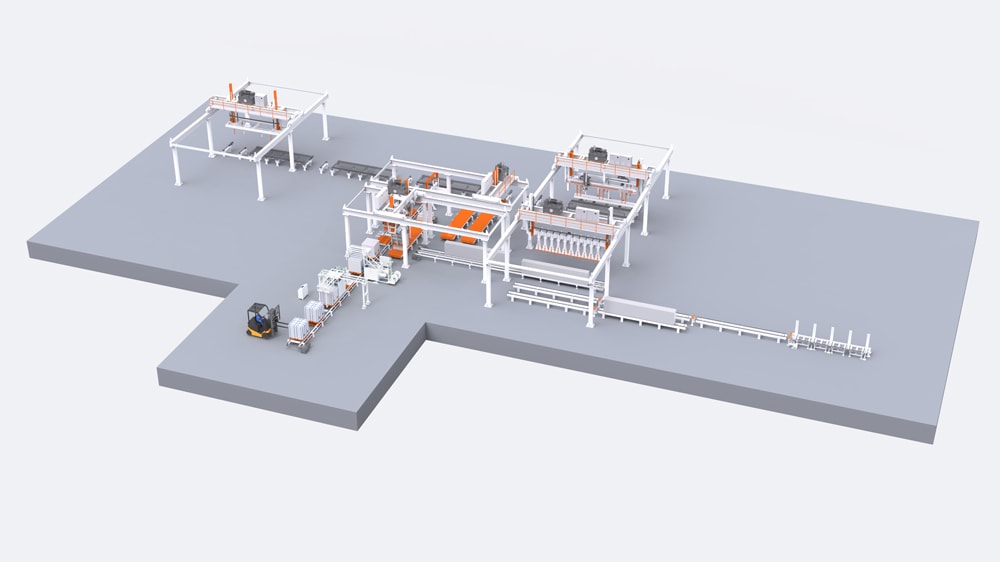

• Finished Products Packing Section

  This section handles the sorting, stacking, packaging, and transportation to storage yard of white cakes, which have been separated after autoclave.









• High capacity
  To meet the demands of regional high-output rapid production lines, Teeyer Intelligent leverages its industry-leading technology to achieve an annual production capacity of 1,000,000 cubic meters of AAC products per single line, setting a benchmark in the industry.
• Energy-efficient
  Through a comprehensive plant-wide steam energy efficiency management system and waste heat recovery, we deliver high-efficiency energy savings, effectively reducing operational costs for enterprises.
• Highly Automated
  Teeyer Intelligent has designed an advanced, fully integrated DCS (Distributed Control System) electrical automation solution based on Siemens PLC hardware. Through continuous system iteration and end-user feedback, this solution features decentralized control and centralized management, ensuring low equipment failure rates and simplified maintenance.
• Fully-Customized
  Teeyer: Fully Customized Solutions for Your Production Needs
  At Teeyer, we provide fully customized production solutions—whether complete plants or individual machines—tailored to your exact requirements. We carefully evaluate key factors such as production capacity, facility layout, budget, and operational goals to deliver optimized systems that maximize efficiency and ROI.
• Turnkey AAC equipment supplier
  As your technical partner, Teeyer will participate in the whole AAC plant project, which includes project plan, construction and operation.
• Customization Options

  • Production lines can be tailored for specific capacities, configurations, and levels of automation.
  • Custom design for plant layout and equipment integration.
  • Adaptable to different production scales, from small to high-capacity factories.

• Vertical cutting & Flat cake autoclaving:
  The horizontal autoclaving method refers to an autoclaving process where the green cake is placed into the autoclave with its largest surface (e.g., 6×1.5m plane) parallel to the ground, with both blocks and panels standing vertically at 600mm height on the autoclaving cart.
• Vertical cutting & Vertical cake autoclaving:

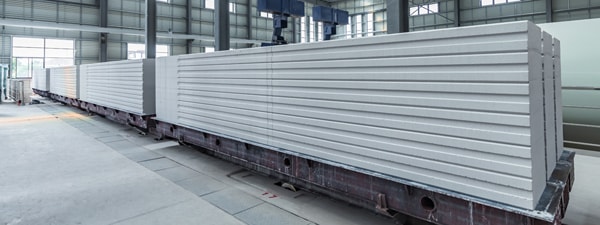

  The vertical autoclaving method involves positioning the green body with its minor surface (e.g., 6×0.6m plane) parallel to the ground during steam curing. In this configuration, both blocks and panels stand vertically on the curing trolley at a height of 1200mm for optimal autoclave processing.

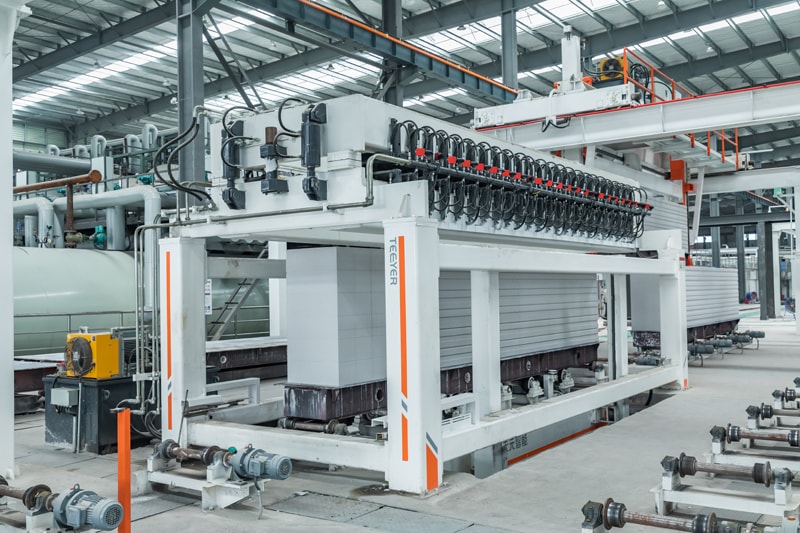

*Advanced Vertical Cutting Technology
Teeyer has established its market leadership through proprietary vertical cutting technology, integrated with servo-controlled cutting systems to deliver rapid, efficient, and exceptionally stable performance.

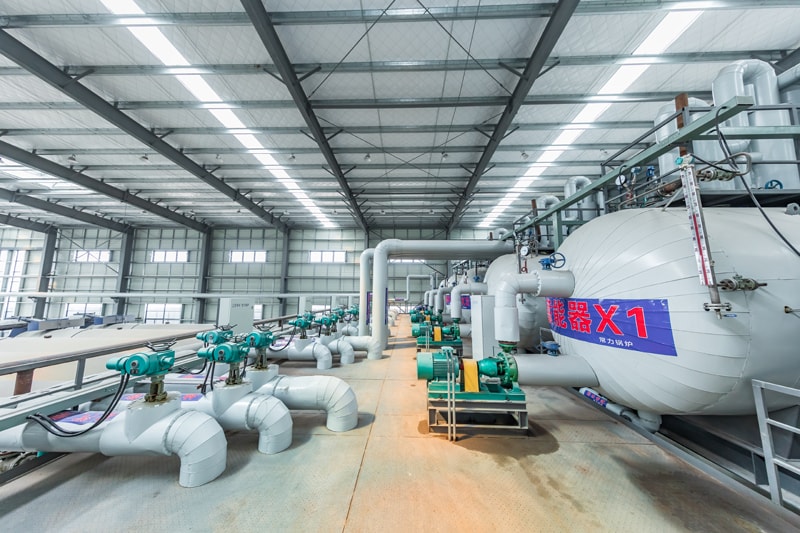

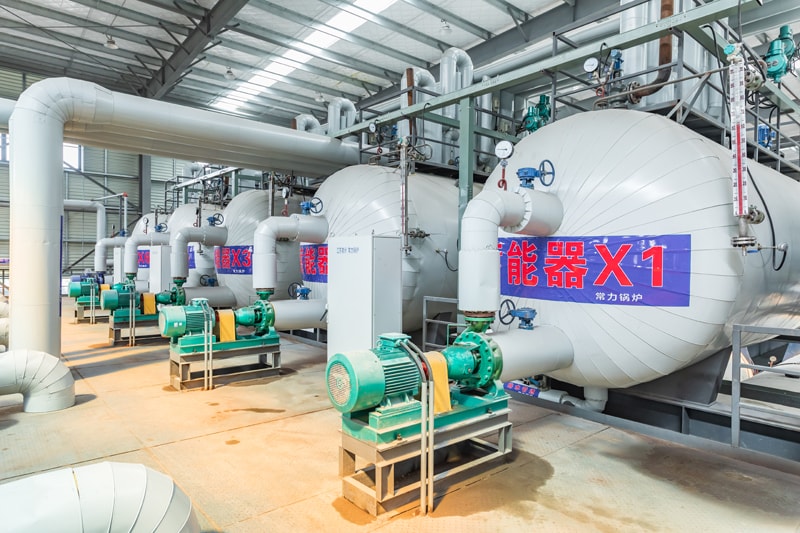

Steam Energy Efficiency Management System
The system employs high-efficiency steam traps to achieve zero steam leakage. The discharged high-temperature condensate can be utilized for mold and pre-curing heating, reducing steam consumption. For steam discharged from the autoclave, a combination of steam reflux and heat recovery is adopted to maximize energy utilization. Low-pressure steam and high-temperature hot water are further used to heat boiler feedwater, ensuring optimal waste heat recovery.

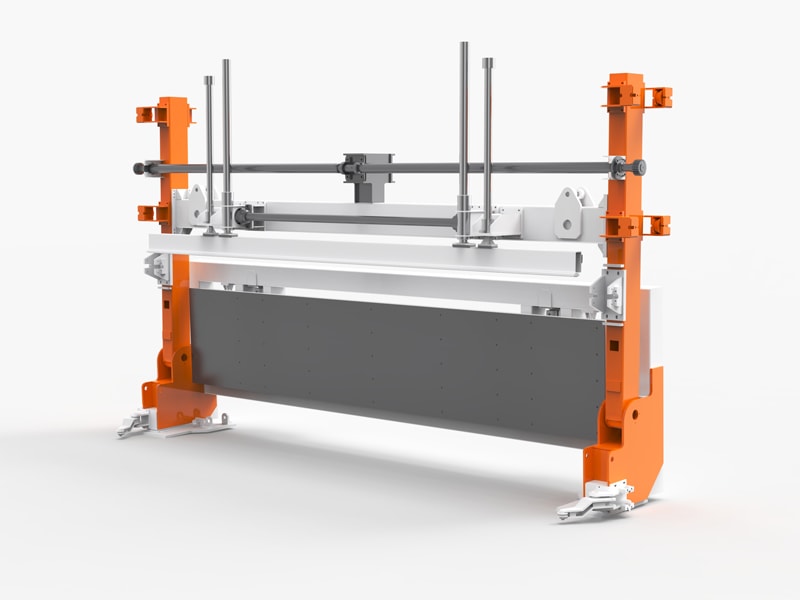

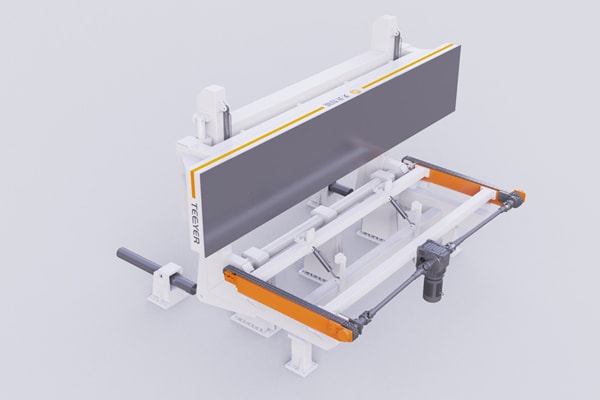

The servo side cutter adopts servo cylinder drive, precisely controlling the feed amount of each scraper, ensuring a smoother and more even cutting surface. The tongue and groove cutter is equipped with four types of cutters.

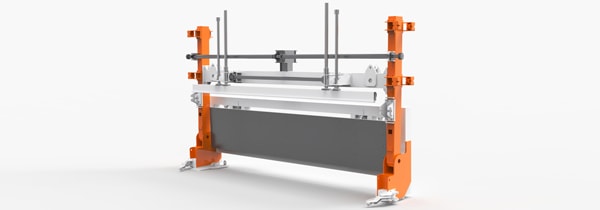

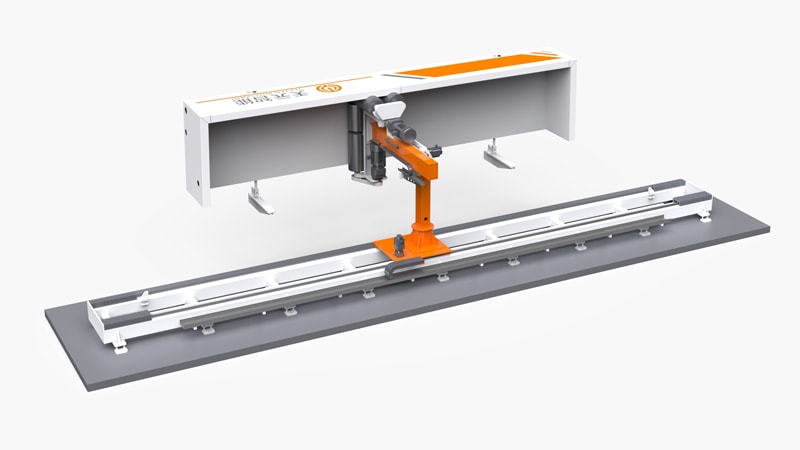

It precisely adjusts the cutting position of each wire and allows for setting loss compensation according to the cutting wire diameter, significantly enhancing product dimensional accuracy, reducing deviations caused by manual wire placing. Additionally, it features wire breakage alarms and automatic wire cleaning functions.

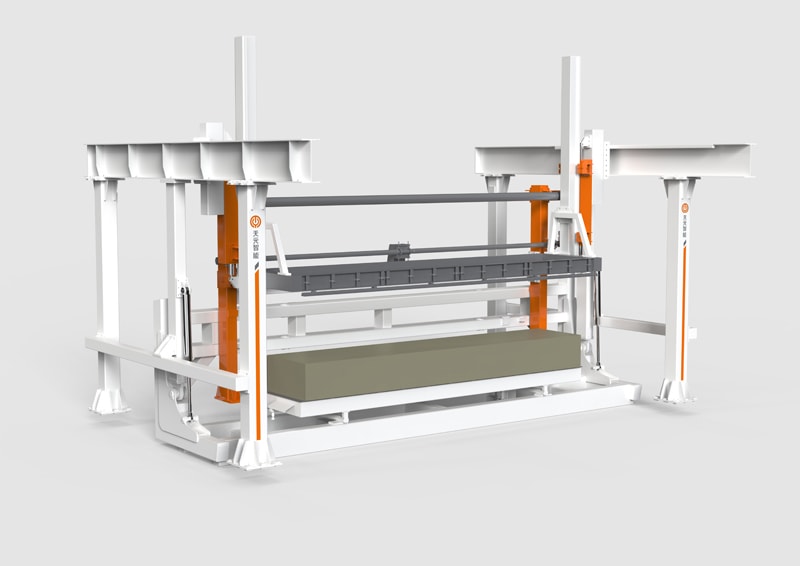

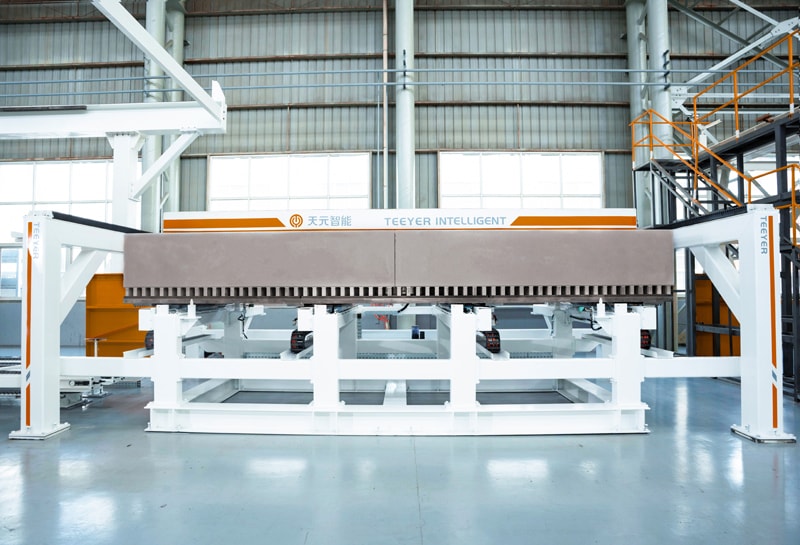

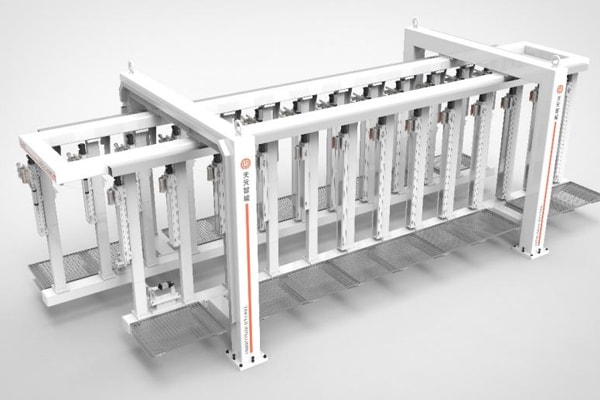

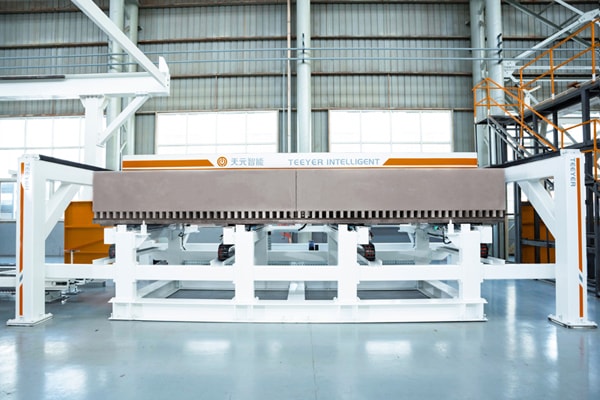

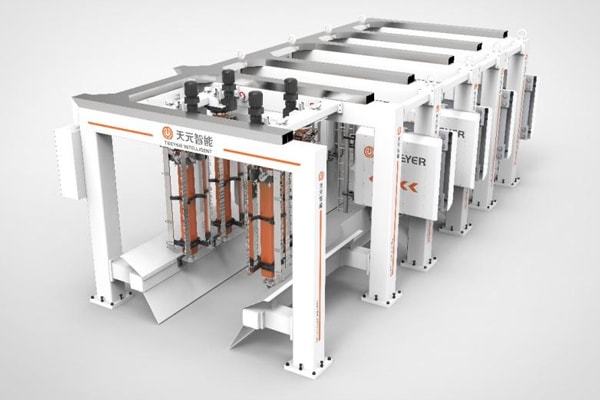

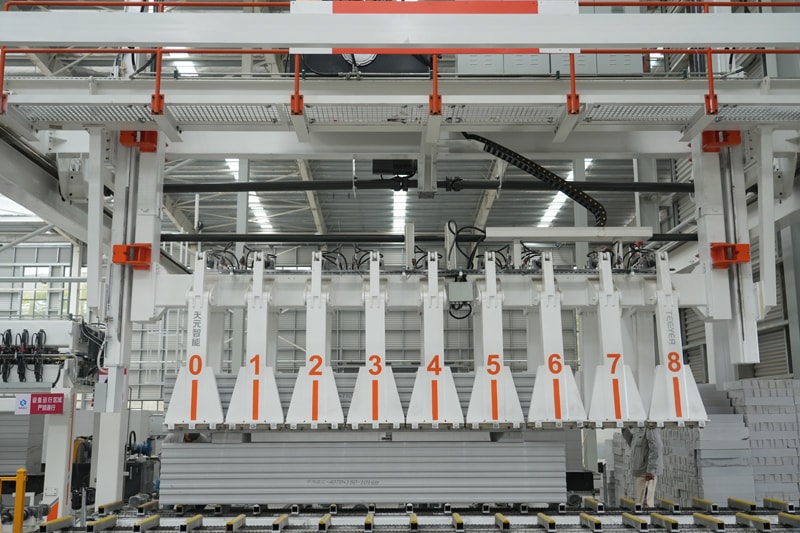

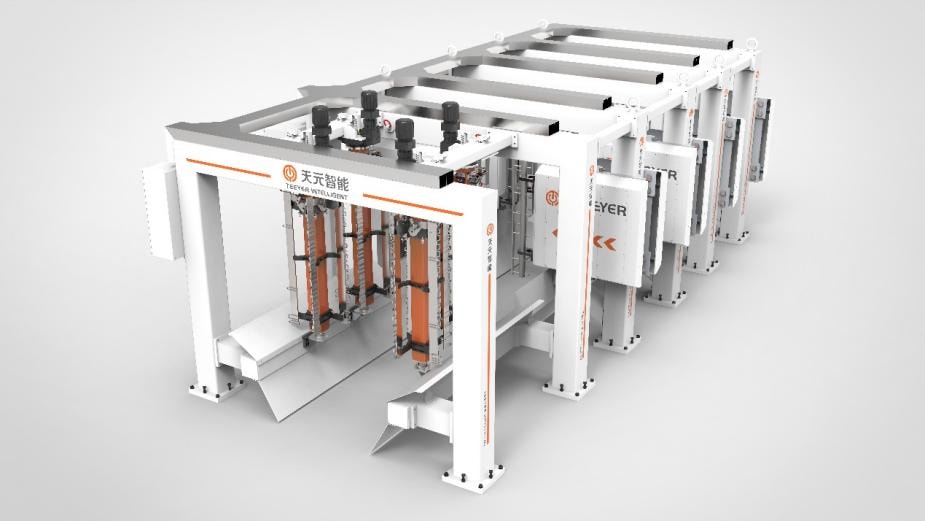

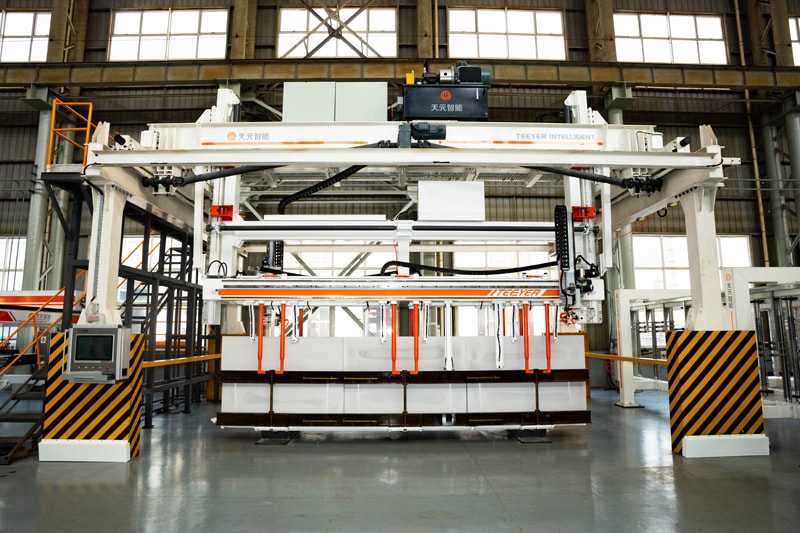

It automatically adjusts the position of the separating supports based on product specifications to complete the green cake separation process. After separation, the result is inspected to ensure quality. The green cake separator is well-suited for vertical cutting and horizontal autoclaving processes. It helps reduce adhesion during autoclaving, prevents damage during separation, and improves the overall product qualification rate.

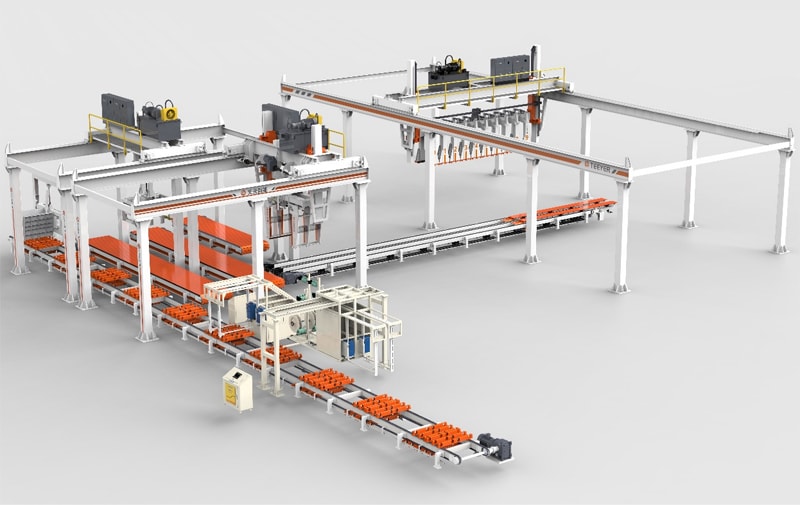

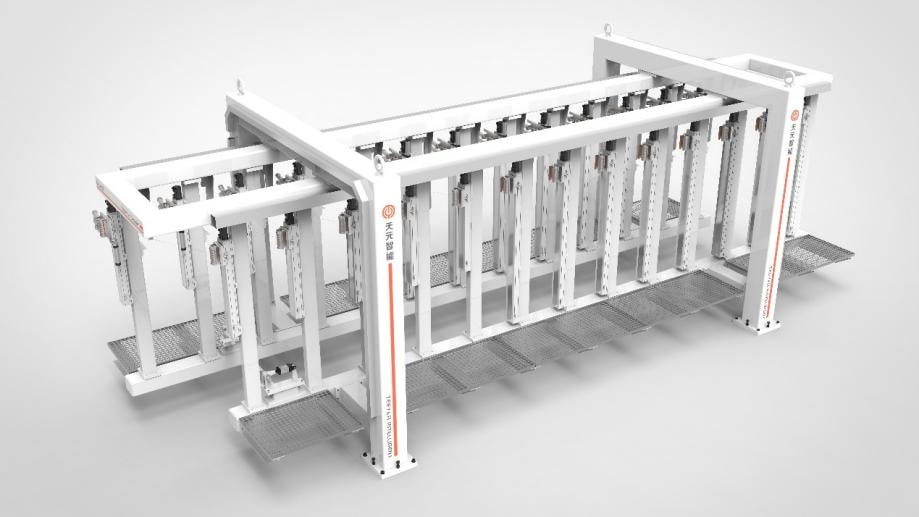

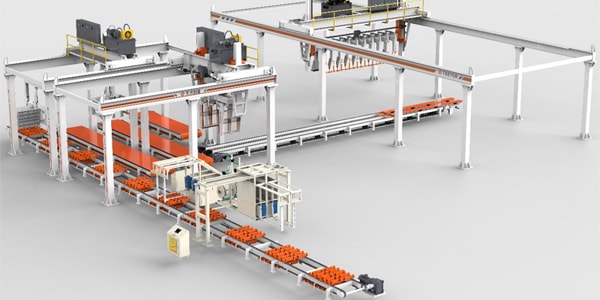

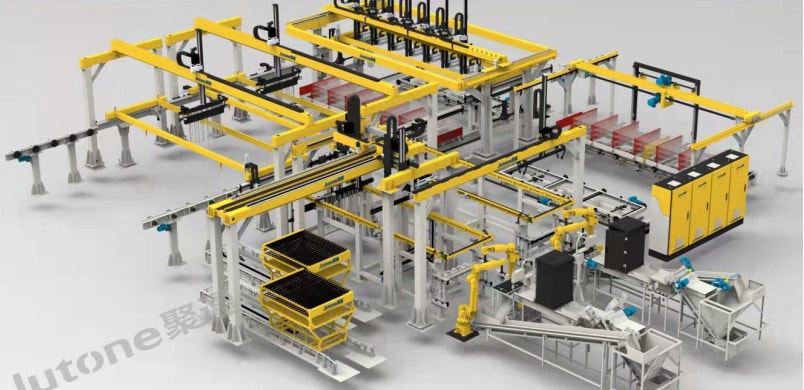

The system features a wide range of automated functions, including automatic dowel cleaning, fastener conveying, precise positioning and arrangement of dowel frames, automatic fastener installation, steel mesh circulation, and mesh assembly. These capabilities significantly enhance production efficiency, ensure stable operation, and reduce overall production costs.

The system combines a rotary clamping device with a block-selecting clamp to stack the blocks, enabling both palletized and non-palletized linear conveying. This flexible solution meets the packaging requirements for various product specifications and enhances the efficiency of finished product handling.

The mould cleaning device automatically removes waste residue from the mould, enhancing production line automation and optimizing the working environment.

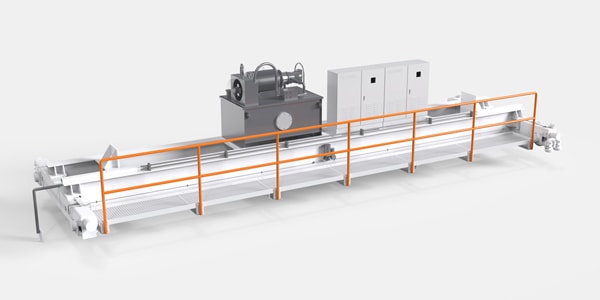

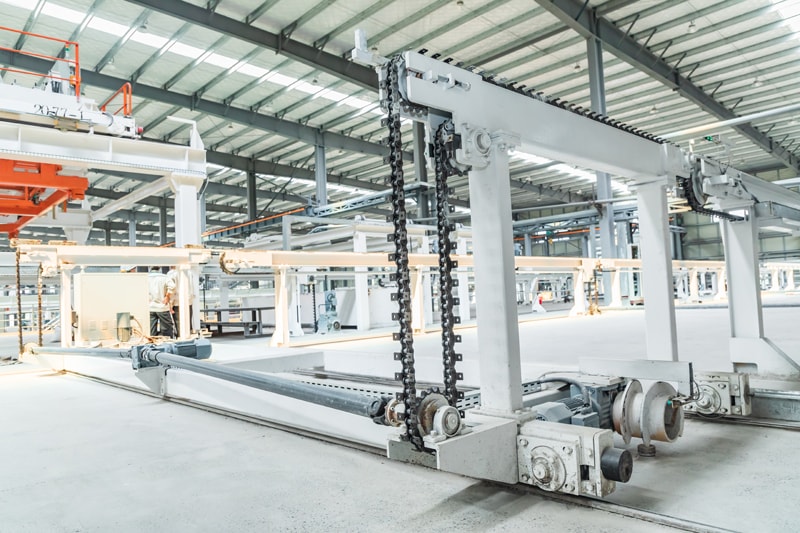

It adopts automatic transverse movement technology, greatly improving the production efficiency of the whole production line.

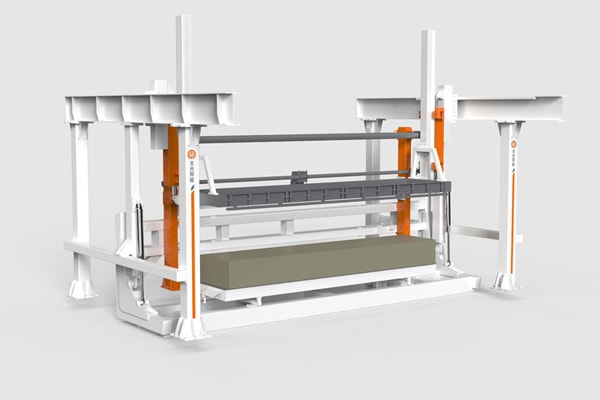

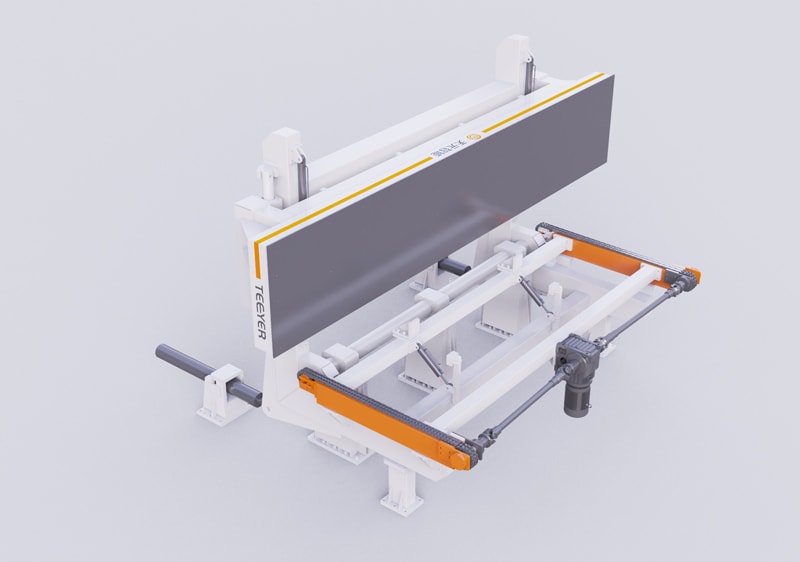

Bottom waste removing hoist tilts the cake and removes the bottom waste on the move, which improves productivity and is more commonly used in high output block production lines.

The walking wheels and key moving components are equipped with an automatic lubrication system, which enables automatic oil supply to the bearings of moving parts. This reduces equipment failures and downtime, thereby improving production efficiency.

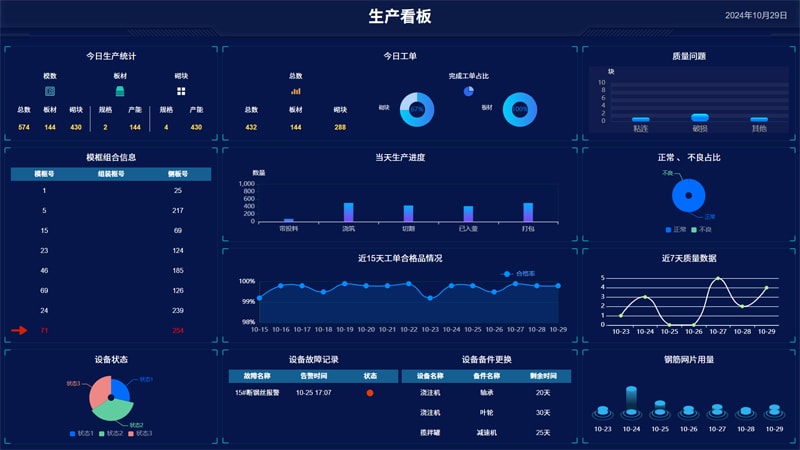

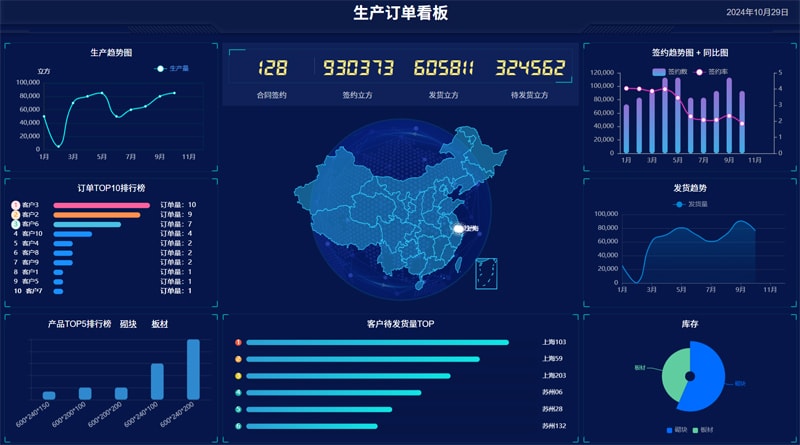

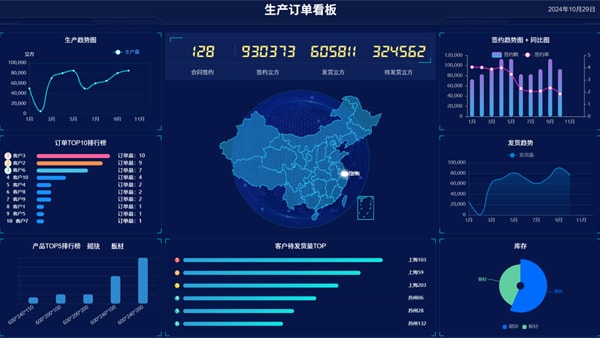

The MES (Manufacturing Execution System) system deeply integrates the intelligent module with the automation equipment, transforms the traditional management mode into the digital management mode, and strives to ensure that customers can control the production cost more accurately.

Through the collection, aggregation, and analysis of all kinds of data in the production line, production data, work flow and task visualization can be achieved to improve enterprise efficiency, significantly enhancing enterprise competitiveness and sustainable development.

• Leveraging over 20 years of technical expertise and practical experience from more than 2,000 automated production lines, Teeyer Intelligent’s engineers and automation specialists have designed an advanced, fully integrated DCS (Distributed Control System) electrical automation solution based on Siemens PLC hardware. Through continuous system iteration and end-user feedback, this solution features decentralized control and centralized management, ensuring low equipment failure rates and simplified maintenance.
• The decentralized control system adopts a modular architecture, with each standalone or integrated machine equipped with an independent CPU and localized programming. This enables independent operation and real-time monitoring. A key advantage is that a malfunction in one device will not halt the entire production line. If a fault occurs, the affected unit can be switched to manual operation while other equipment continues automatic production, minimizing downtime. This design allows for rapid fault identification, troubleshooting, and swift resumption of normal operations.
• Centralized management is achieved through industrial internet and fieldbus technologies, integrating the AMES system for real-time data sharing. This enables intuitive real-time monitoring, accurate historical data logging, and intelligent management of equipment operation, fault diagnosis, and remote maintenance. Teeyer Intelligent is a pioneer in developing a remote intelligent operation and maintenance system for ALC (Autoclaved Lightweight Concrete) production lines, providing users with timely production insights and efficient remote support services.

Beyond delivering new AAC production lines, Teeyer specializes in modernizing existing plants to enhance performance and competitiveness. By integrating our advanced technologies into your operational line—even years after initial installation—we provide targeted refurbishments that minimize investment while future-proofing your operations, aiming to boost productivity with cutting-edge solutions.

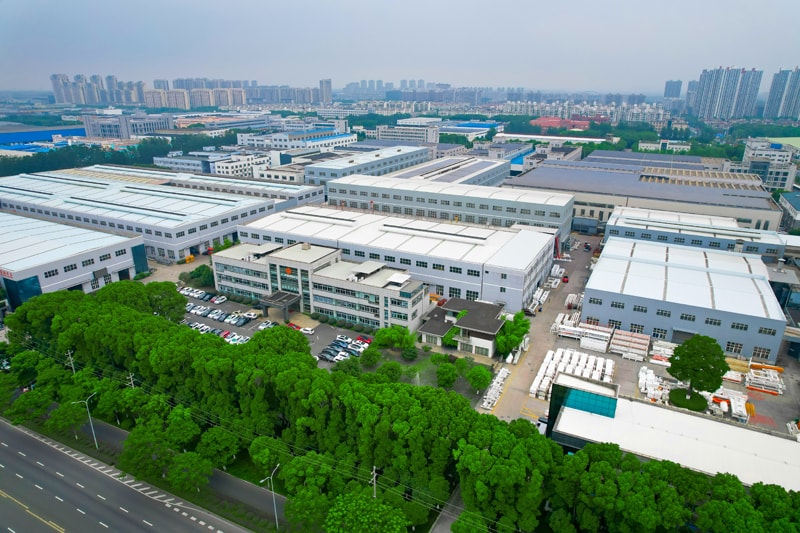

Jiangsu Teeyer Intelligent Equipment Co., Ltd. was set up in the year of 1989, located in Changzhou, Jiangsu Province.

Teeyer Intelligent specializes in providing production equipment and automated turnkey solutions for green and eco-friendly building material enterprises that manufacture autoclaved aerated concrete (AAC) products. Its products are also widely used in various industries and related fields, including green construction, building materials, prefabricated buildings, construction machinery, port machinery, security inspection equipment, and airport ground support equipment.

Teeyer is the first domestic company in China to localize the production of aerated concrete equipment. By absorbing and learning from advanced foreign technologies, Teeyer broke the previous reliance on fully imported systems.
Up to 2023, Teeyer has completed over 1,200 AAC production lines, including more than 200 lines exported to over 20 countries and regions worldwide.

On October 23, 2023, Teeyer Intelligent successfully debuted on the Main Board of the Shanghai Stock Exchange, earning recognition as a pioneer in China's autoclaved aerated concrete (AAC) complete equipment industry.

• Laboratory Testing and Analysis
  Teeyer Laboratory employs multiple analytical methods to measure various ionic elements in raw materials—such as potassium, sodium, calcium, silicon, aluminum, iron, sulfur, and chlorine. By cross-verifying results using different techniques, we enhance measurement accuracy, minimize errors, and improve analytical precision. For all tested raw materials (e.g., sand, lime, gypsum, aluminum powder, and water samples), Teeyer Laboratory provides standardized inspection reports along with usage recommendations and guidance from our formulation process engineers.
• Professional Installation Support
  Teeyer delivers end-to-end installation support through its team of expert engineers and technicians, customized to meet your project's specific requirements. From on-site or on-line technical support to complete turnkey installations, we guarantee smooth commissioning processes and peak operational efficiency throughout the entire project lifecycle. Our all life cycle service approach ensures every system component performs optimally from initial setup to final implementation.
• Expert Commissioning Support
  Teeyer's team of highly qualified engineers provides tailored commissioning assistance, from on-site or on-line guidance to complete turnkey project management. We ensure smooth system startup and operational readiness, followed by responsive after-sales support to continuously enhance your facility's productivity and operational efficiency.
• Professional Training Solutions
  Teeyer provides systematic and multi-faceted training services to ensure Party A's operators can effectively and efficiently operate the equipment. Training covers key areas, including process formulas, equipment operation guidelines, safety regulations, product quality control, and basic equipment maintenance.
• Remote service
  Teeyer’s production line is highly intelligent, enabling remote monitoring and operation. Real-time data recording helps quickly identify and resolve production issues. Supported by a team of around 60 engineers, Teeyer offers 24-hour rapid response services for reliable assistance.
• Spare parts service
  The Teeyer spare parts service is available for our clients all over the world and provides support and supply of original parts within the shortest possible time.

• Investment Return (ROI) Analysis
  • High Production Efficiency: Automated systems and optimized processes reduce labor and energy costs.
  • Energy Savings: Waste heat recovery and steam efficiency lower operating expenses.
  • Material Savings: High-precision cutting reduces waste, and the use of recycled materials lowers raw material costs.
  • Faster Installation and Reduced Project Timelines: Shorter construction time enhances project cash flow.
• Certifications and Standards
  • CE certification ensuring compliance with European safety and quality standards.
  • ISO9001 quality management certification, ensuring product consistency and reliability.
  • ISO14001 environmental management certification, supporting sustainability initiatives.
• Environmental Compliance
  • Reduction of carbon footprint through efficient resource use and process innovations.
  • Conformance to local and international environmental regulations.
